Artificial Intelligence (AI) helps to detect precursors of tropical cyclones
Research Results Engineering
A research group led by Dr. Daisuke Matsuoka from the Center for Earth Information Science and Technology of the Japan Agency for Marine-Earth Science and Technology (JAMSTEC) and Professor Seiichi Uchida at Kyushu University has successfully presented a deep learning*¹ approach for identifying tropical cyclones and their precursors.
In a conventional approach, prediction of tropical cyclones such as typhoons and hurricanes has usually been carried out with model-driven methods*² using climate models based on observational data and monitoring of cloud development from satellite data. In this study, the research team has applied a data-driven approach*³ to detect the precursors of a developing tropical cyclone from a vast amount of simulation data using deep learning and examined the detection accuracy.
To ensure accurate identification in deep learning, a vast amount of data exceeding several thousand examples per category is required. So, the scientists first applied a tropical cyclone tracking algorithm to 20 years of climate simulation data generated by NICAM (Nonhydrostatic ICosahedral Atmospheric Model)*⁴ and created 50,000 cloud images of precursors of tropical cyclones and developing tropical cyclones. They also created 10 training data sets from the aforementioned 50,000 cloud images combined with 1 million images of clouds that did not develop into tropical cyclones, thereby making a total of 1,050,000 images. A total of 10 types of classifiers with different characteristics were formed from machine learning using a deep convolutional neural network*5. As a result of building an ensemble classifier for making final judgment by comprehensive evaluation of the results of the 10 different types of classifiers, it was found that precursors of tropical cyclones using climate simulation data from NICAM can be detected with higher accuracy.
To predict actual tropical cyclones before they occur however, it is still necessary to further improve the training method and data, and ensure the same level of detection capability for cloud images from satellite observation and/or real-time simulation data with data assimilation. By adopting AI technology with deep learning in this field, it is expected to lead to a new development of big data analysis for marine and earth science with combination of data-driven and model-driven approaches.
This work was supported by JST, PRESTO Grant Number JPMJPR1777, JSPS KAKENHI Grant Number 16K13885, 26700010, and 17K13010.
The above results were published in Progress in Earth and Planetary Science issued by Japan Geoscience Union on December 19, 2018.

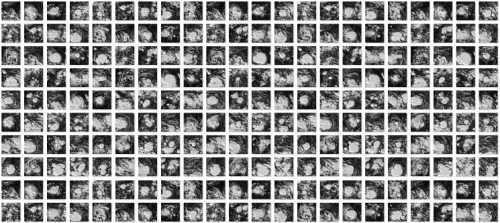

Figure 1. Examples of cloud images of tropical cyclones and precursors (outgoing longwave radiation) created by applying a tropical cyclone tracking algorithm to 20 years of NICAM simulation data. Each image shows 1,000 km2 (64 × 64 grid).
Figure 2. An ensemble classifier using deep convolutional neural networks (CNN).
(a) In the training phase, 10 different CNN learn using different training data. (b) In the predicting phase, a single input image is classified into one of two classes by 10 different classifiers, and the weighted average is taken as the final probability of existence. In areas where the existence probability exceeds a previously assigned threshold, a tropical cyclone or its precursor is considered to be detected.
Figure 3. Example of detection results using the ensemble classifier on untrained data.
Areas (1,000 km2) with cloud cover of 30−95% are targeted for prediction, and are indicated by a white box. Areas targeted for prediction where the probability of existence of a tropical cyclone or precursor is predicted to be 100% (all 10 classifiers predict that a tropical cyclone or precursor exists) are indicated by a red box. The blue and red dots indicate the center points of correct answers for tropical cyclones and precursors, respectively, which are already evident from the tropical cyclone tracking algorithm.
Journal ReferenceDeep learning approach for detecting tropical cyclones and their precursors in the simulation by a cloud-resolving global nonhydrostatic atmospheric model ,Progress in Earth and Planetary Science,
Research-related inquiriesSeiichi Uchida, Professor, Faculty of Information Science and Electrical Engineering
